Custom Car Builder Radiators and cooling systems Meziere remote water pump wp136s

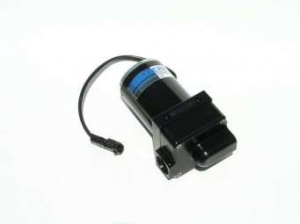

NameMeziere remote water pump wp136s
CategoryRadiators and cooling systems
Price$241.16
DescriptionRemote mount inline design for universal fit
Suitable for street or drag strip use ? 3000+ hour life expectancy
Show quality black anodized finish
Standard motor provides 20 gallons per minute free flow rating
Stainless steel hardware included
Single inlet port threaded #12AN to accept a variety of fittings
Single outlet port threaded #12AN to accept a variety of line connection options
Light weight. Complete standard unit weighs only 6.3 pounds
Stainless steel large diameter main shaft with high performance ceramic seal
#12AN fittings available for #08AN, #10AN, #12AN, #16AN, 5/8", 3/4", 1", or 1 1/4" slip hose.
Technical Specifications:

Finishing The System: This pump is supplied complete with hardware but without the inlet and outlet fittings. The fittings need to be ordered according to the type and size of the desired hose connections.
Amperage draw: Under normal use the pump will draw 6-7 amps.
Overall Height Dimension: The standard pump is 7.25" tall an roughly 3.5 square.
Pump Weight: This application weighs 6.3 lbs.
16 volt systems: When purchasing a pump for a 16 volt system we recommend the 16 volt optional motor on our pump. The 12 volt pump will work for limited use applications.
