Custom Car Builder Chassis Backhalf package

NameBackhalf package
CategoryChassis
Price$6495.00

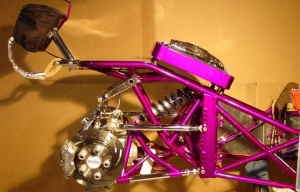

Features4-LINK BACKHALF PACKAGE
SINGLE SHOCK


NOW YOU CAN TRANSFORM YOUR SOLID CAR OR SLIP JOINT TO
A STATE OF THE ART 4-LINK. JUST SUPPLY US WITH YOUR CAR
TO RECEIVE THE SAME X-ARM 4-LINK SET-UP USED ON OUR
CURRENT SOFT TAIL MODEL.

TRANSFORMATION INCLUDES

  • ALL NEW 4130 CHROMOLY FRAME SECTION INSTALLED FROM MIDPLATE BACK
  • FABRICATED 9" STEEL REAR HOUSING
  • FILLER/INSPECTION BUNG WITH CAP
  • HOUSING VENT
  • GUSSETED 4-LINK BRACKETS FOR MAXIMUM SHEAR STRENGTH
  • 11/4 X .095 4130 CHROMOLY 4-LINK TUBES
  • 4130 CHROMOLY 4-LINK HIEMS
  • CUSTOM 4130 CHROMOLY X-ARM WITH ADJUSTABLE BARS AND GUSSETED SHOCK MT.
  • COMPLETE MILLER RACE CARS ANTI ROLL SYSTEM
  • GUSSETED UPPER SHOCK MTS.
  • 360 DEGREE DRIVE SHAFT LOOP
  • BRAKE LINE TABS
  • CUSTOM TRANS LIMITER SETUP
  • CUSTOM NHRA/IHRA LEGAL TAIL LIGHT MT.
  • CUSTOM BUILT 1350 SERIES DRIVESHAFT
  • RADIATOR MT. TABS
  • TRANSMISSION COOLER MT. TABS
  • QUICK REALEASE REAR ON-OFF CABLE MT.
  • ALL NECCESARY SLOTS IN CHASSIS WITH WELD ON GUSSET PLATES
  • DZUS ON REAR 4-LINK COVER PAN
  • GUSSETED MIDPLATE MTS. WITH SUPPORT TUBES
  • PARACHUTE PACK MT AND PULL POINT
  • STRANGE DOUBLE ADJUSTABLE SHOCK AND 600 lb. COILOVER SPRING
  • ANTI ROLL ADJUSTER RODS
  • GRADE 8 HARDWARE THROUGHOUT
